L730-JP Smart Compact Lock
The smarter way to secure your daily life. L730 is designed to extend electronic access control deeper into different buildings, offers user-friendly function, multiple ways to unlock the door, and fits all types of doors seamlessly. It is Smart, Secure, Innovative, and Easy to Install.
Color
Added
Get Quote
Easily retrofit most Japanese profile doors
Considering the specifications of the Japanese mechanical mortise lock, L730 smart lock is fully complied with most mortise locks in Japan. The installation can be completed in a short time and keeping the original mechanical mortise.
Multiple ways to unlock
You can choose any of the 3 ways to unlock L730 smart lock. Access remotely via the WAFERKEY App, or by using the key card. More than that, the original mechanical key is still available. You will never be locked out again from forgetting the mechanical key. Find to unlock it with your way now!
DIY Installation
Just prepare a screwdriver and follow the simplified installation guide. The installation can be done within few minutes, and no professional service is required. Saving more in extra service charges!
It is better than what it looks like
With CNS60A Taiwan fire-proof certificate, L730 protects not only your safety but also the keeps the durability and stability as European standards. The compact design offers the fashion for all type of latest front doors, but mechanism is never reduced the strength. It is a smart locks which combines the aesthetics and sturdiness.
High-security protection
● Achieve CNS60A certification, fire resistance to protect your property. ● Unlock from inside anytime ● Automatic Locking: When your door is closed and locks it automatically, keeping your home secure when you’re in a hurry. ● Withstands any season: Works in temperatures ranging from -20°C to 60°C. ● Concealed fixing screws for greater security and improved aesthetics.
Easy operation and Stylish design
● Perfectly fit to existing mechanical mortises without damaging the door openings. ● Replaceable handle design for customized needs. ● Large storage capacity: It can accommodate up to 2,000 users.
Long battery life
● Up to 1.5 years (10 openings a day, service at 20℃). ● Acoustic low power warning: Never worry about out of battery power and lock outside. ● Power-saving design: The smart lock's circuits wake up only when it is used.
Commercial
Offices / Commercial Buildings
Access control requirement at all areas in side the buildings can be fulfilled. WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.
SPECIFICATION
Access Solutions
Key Card / App / Mechanical Key
Number of users
Key Card: 1,000
Wireless Technologies
MIFARE / Bluetooth
Door thickness
30 - 45mm (LA)
28 - 47mm (LSP)
Power Source
CR2 lithium battery x 1pc
Battery Life
Up to 1.5 years (10 openings a day, service at 20℃)
Operation Temperature
-20°C ~ 60°C
Certificates
Access Control

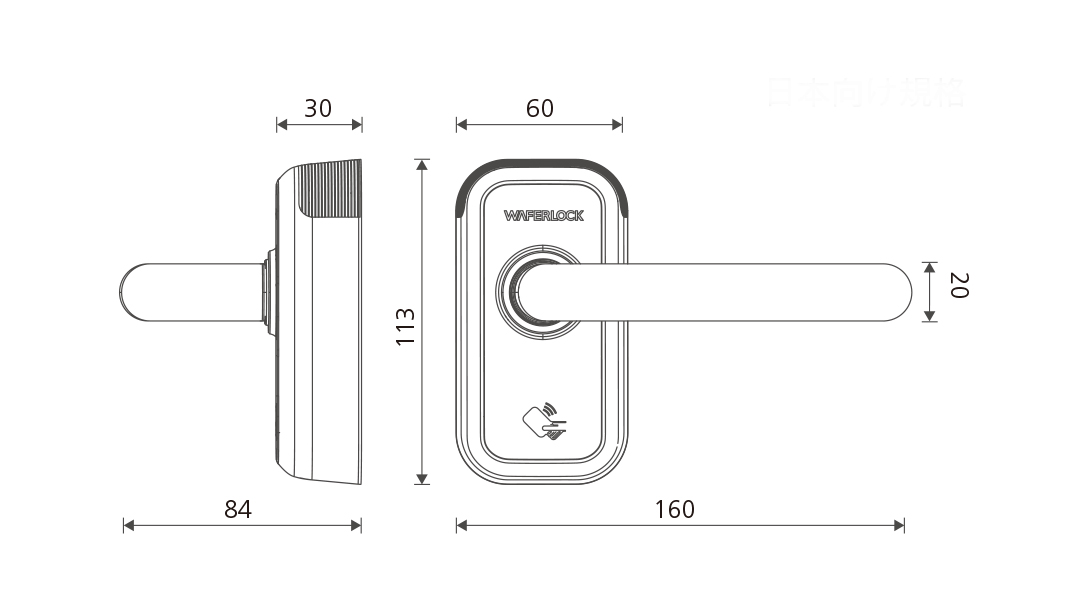

Technical Drawing
(Unit: mm)
