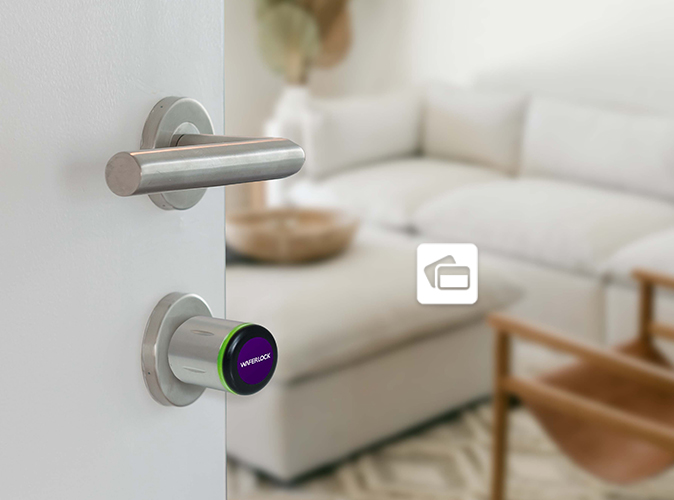

C700 Electronic Cylinder
C700 may be small, but complete in every detail. It is one of the most popular models for professional lock business in the European market, and brings more convenient and safer functions to meet the various needs of daily intelligent life.
Color
Type
Added
Get Quote
Easily retrofit most Euro profile doors
Even you are new to DIY, simple installation is possible on any type of door, including those with narrow frames.
Within minutes you can swap out your mechanical lock for C700 electronic cylinder. All you need for installation is a Philips screwdriver, in about 5 minutes that you can install a smart cylinder for your home and office.
Simple but Practical
There are three types of cylinders, standard, half and double, to fit all various of lock cases. C700 has the most suitable unlock method, Key Card for all generations to replace the traditional mechanical key solution.
Ultimate protection
Robust and durable. The Cylinder provides anti-theft protection that is tested and approved by EN15684 certification. Built to withstand prevent the opening or breaking of the lock by force. The C700 is a cylinder you can rely on when you are out of home or office.
Protected against harsh environments
IP67 water resistance and dust protection for critical environments and extreme climates. C700 is built with durability in mind and can effectively withstand harsh conditions. This way, users can rest assured that their smart keys will work normally no matter how tough the surroundings get.
High-security protection
● Achieve EN15684 certification and provide Anti-Drill, Anti-Bump, Anti-Snap lock protection for your property.
● Stainless steel knob design to prevent from corrosion and rust.
● Withstands any season: Works in temperatures ranging from -20°C to 60°C.
● Concealed fixing screws for greater security and improved aesthetics.
● Pass 30 minute fire test to protect your property and life safely.
Easy operation and retrofitting
● It universally compatible cylinder that replaces your existing cylinder and fits any door with unlimited models options.
● An easy-to-use electronic locking platform.
● Simple installation by changing the cylinder. No wiring or drilling work required.
● Large storage capacity: It can accommodate up to 1000 users for key card recognition.
Long battery life
● Number of openings: Up to 150,000.
● Acoustic low power warning: Never worry about out of battery and lock outside.
● Power-saving design: The smart lock's circuits wake up only when it is used.
Commercial
Offices / Commercial Buildings
Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.
SPECIFICATION
Access Solutions
Key Card
Number of users
1,000
Wireless Technologies
MIFARE/NFC (Android)
Cylinder Length
30/30mm~70/70mm (Standard/Double)
30/10mm~70/10mm (Half)
Power Source
CR2 lithium battery x 1pc
Battery Life
Number of openings: Up to 150,000
Operation Temperature
-20°C ~ 60°C
Protection Class
IP67
Certificates
Access Control
SBA
Data On Card + API
HPMS
Hotel Locking System
e-Link
Data On Card

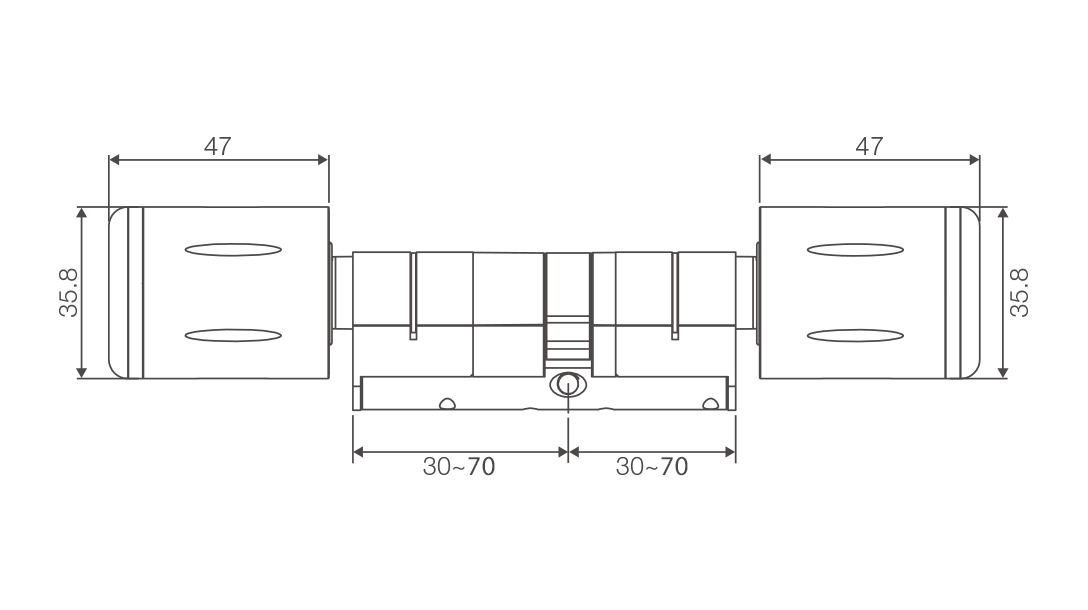

Technical Drawing
(Unit: mm)
more
C700 User/Installation Manual
