C500 Electronic Cylinder (Swiss)

C500 is a small, delicate and powerful electronic cylinder, and it is the best
professional choice and solution in Swiss. Convenient and safe functions link with IoT
gateway to make security assured at your daily intelligent life.
Color
Type
Added
Get Quote

Easily retrofit most Swiss profile doors

C500 electronic cylinder is customized solution for the most Swiss Standard doors, including Narrow Frame Door. Just prepare a screwdriver and follow the simplified installation guide. The installation can be done within 5 minutes, no professional service is required. Saving more in extra service charges!

My own style

KEY Card is an easy, convenient and suitable for all ages to unlock the door to replace the traditional mechanical key, no more worrying about finding keys.

Protected against harsh environments

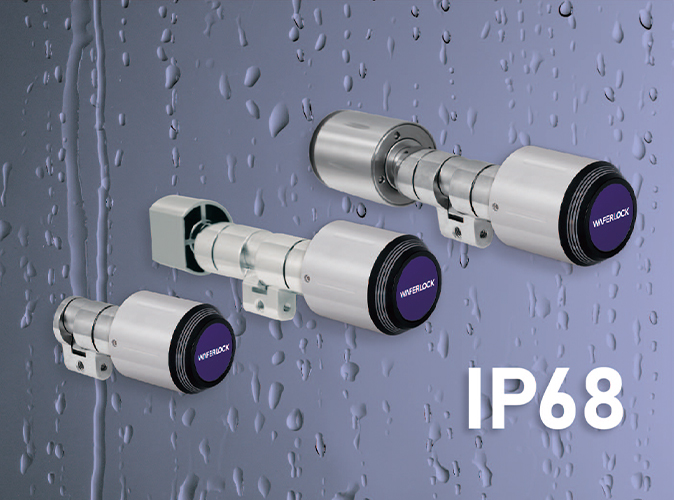

IP68 rating, which protected C500 from immersion in water with a depth of 1 meter for 30 minutes. C500 is built with durability in mind and can effectively withstand harsh conditions. This way, users can rest assured that their smart keys will work normally no matter how tough the surroundings get.
Cylinder - Long battery life

Long Battery Life

C500 is a smart electronic cylinder with long battery life which last up to 2 years (10 openings a day, service at 20℃). Acoustic low power warning let you never worry about running out of battery power.

High-security protection

● Achieve EN15684 certification and provide Anti-Drill, Anti-Bump, Anti-Snap lock protection for your property.
● Stainless steel knob design to prevent from corrosion and rust.
● Withstands any season: Works in temperatures ranging from -20°C to 60°C.
● Concealed fixing screws for greater security and improved aesthetics.

Easy operation and retrofitting

● It is compatible cylinder that replaces your existing cylinder and fits any door with unlimited models options.
● An easy-to-use electronic locking platform.
● Simple installation by changing the cylinder. No wiring or drilling work required.
● Large storage capacity: It can accommodate up to 2,000 users for key card recognition.

Long battery life

● Up to 2 years (10 openings a day, service at 20℃).
● Acoustic low power warning: Never worry about out of battery and lock outside.
● Power-saving design: The smart lock's circuits wake up only when it is used.

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Hospitality

Combination of Technology and Aesthetics

Not only electronic door locks but also a design element.
WAFERLOCK is offering several types of systems for different scales of hotels, and all systems support PMS integration.

Education

High Secure and Intelligent

The systems could be applied for dormitories, classrooms, lockers, equipment and public areas.
The integration possibilities allow third party software to control or monitor all the devices. In order to provide a convenient and secure environment for school staffs and students.

Retail

Stores|Logistics

All scales of stores and simplify the manpower.
WAFERLOCK is offering several types of systems for different scales of stores, and the centralized systems could help the supervisors control the access and monitor the audit trail.

Healthcare

Combination of Technology and Privacy

From home care up to hospitals, the solutions could meet different requirements and standards.
Contactless systems such as face recognition are also available, and the biometric data is stored separately to protect users’ privacy.

Government

High Secure and Intelligent

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Transportation

Stations|Transport Infrastructure

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Residential

Living Houses / Smart Communities

The solutions could be applied for All scales of residence project as simple as an individual unit or complex as a whole community.
With high secure access control system, water and dust proof hardware, and centralized monitoring system.

SPECIFICATION

Access Solutions

Key Card

Number of users

Key Card : 2,000

Wireless Technologies

MIFARE / Bluetooth

NFC (Android)

Cylinder Length

32.5/32.5mm~52.5/52.5mm (Standard/Double)

32.5/11mm~52.5/11mm(Half)

Power Source

CR2 lithium battery x 1pc

Battery Life

Up to 2 years (10 openings a day, service at 20℃)

Operation Temperature

-20°C ~ 60°C

Protection Class

IP68

Certificates

Access Control

Technical Drawing
(Unit: mm)

more
